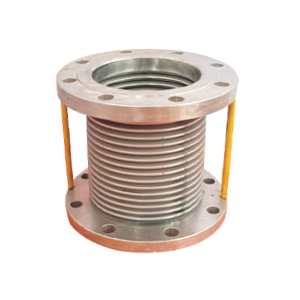

This Metallic expansion joint is engineered to accommodate thermal expansion, vibration, and minor misalignments in piping systems. It features a stainless-steel bellows assembly for flexibility and durability under varying operating conditions. The ends are fitted with mild steel (MS) or carbon steel (CS) flanges, drilled according to ANSI B16.5 Class 150 SORF standards for compatibility with a wide range of piping systems, while maintaining a PN 10 pressure rating.

Key Features:

• Pressure Rating: PN 10 (10.34 bar / 150 psi)
• Flange Material: Mild Steel (MS) / Carbon Steel (CS)
• Flange Drilling: As per ANSI B16.5 Class 150 SORF
• Bellows Material: Stainless Steel (commonly SS304 / SS316)
• Movement Types: Axial, lateral, and angular
• Temperature Range: Depends on bellows material (typically -20°C to +454°C)
• Corrosion Resistance: Enhanced by stainless steel bellows and painted/coated flanges

Advantages:

• Compatible with ANSI B16.5 Class 150 flanged pipework
• Effectively absorbs vibration and movement, reducing mechanical stress
• Enhances system longevity and reliability
• Available in a range of sizes and configurations to suit application needs

Applications:

• HVAC and mechanical piping systems
• Water supply and wastewater treatment
• Oil & gas and petrochemical industries
• Power generation and process plants
• Firefighting and utility networks
