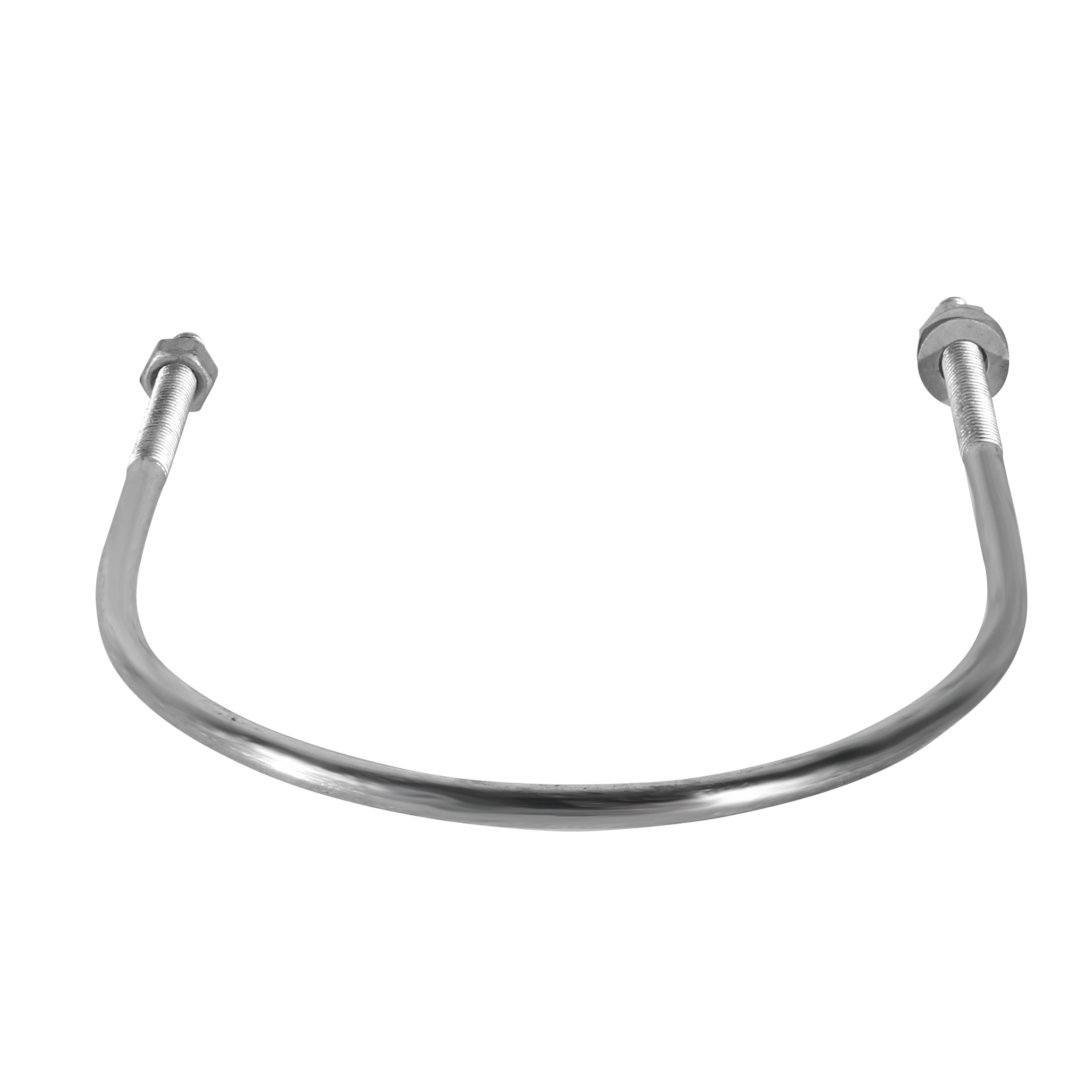

Heavy duty U-Bolt designed to grip, guide or support plain and insulated pipes.
Design Features
- Besides model listed in the table below, a full range of intermediate sizes is available to match the ODs of Easyflex RSI, providing a simple and effective support solution for insulated pipe.
- Easyflex U-Bolt are available with EPDM sleeve, to prevent contact between dissimilar material when used with copper, plastic, aluminum or glass pipe. Lining has a temperature renge of -20 C to 110 C.
Material: Steel
Finish: Electro galvanized post manufacture.
Other Options: U-Bolt with EPDM Sleeve (Suffix ‘RL’) Epoxy Powder Coated Finish (Suffix ‘PC’) Hot Dip Galvanised Finish (Suffix ‘HDG’) Stainless Steel Construction (Suffix ‘SS’) Brass Construction (Suffix ‘BR’)
Compliance - US Standards MSS-SP58 (type 24) MSS-SP69; EG to ASTM B633 SC3, BS 1706 FE/ZN12
Expert Advice for Your Application
No two Applications are the same. We will be happy to go over your application in detail and discuss the possibility of using this product for your application. Would you like some personal advice or do you have any questions? We look forward to supporting you.
