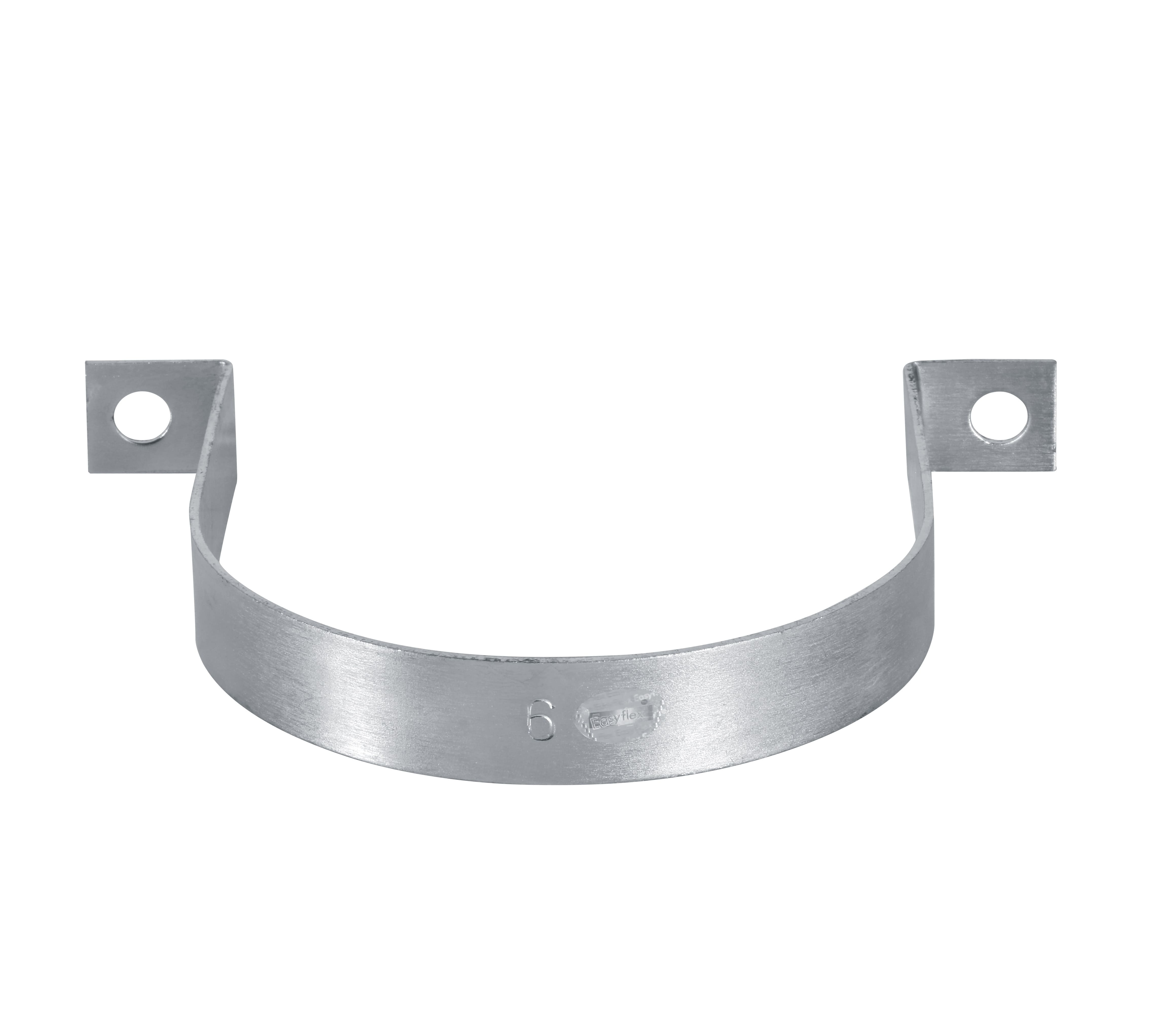

Designed for clamping plain or insulated pipe to structural channel supports such as trapeze hangers, floor stands and wall brackets. Provided with slotted holes for convenient installation.
Design Features
- Electro galvanised post manufacture, to protect edges from corrosion
- Full range of sizes available to be match the outer diameters of Easyflex Rubber Support Inserts (RSI) providing a simple and effective support solution for insulated pipe.
- Also available with EPDM lining.
Material: Steel
Finish: Electro galvanized post manufacture.
Other Options: EPDM Lined (Suffix ‘RL’) Epoxy Powder Coated Fnish (Suffix ‘PC’) Hot Dip Galvanised Finish (Suffix ‘HDG’) Stainless Steel Construction (Suffix ‘SS’)
Compliance - US Standards MSS-SP58 (type 24) MSS-SP69; EG to ASTM B633 SC3, BS 1706 FE/ZN12
