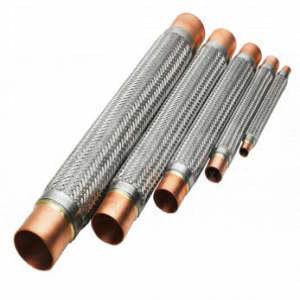

Flexible connectors are used to absorb thermal and seismic movement, absorb hydraulic shock, provide vibration and noise dampening, ease installation and correct minor misalignment of piping and components.

The inner hose is an annular (bellows) design. An annular hose is better suited for pump connections because it can better sustain torsion stress due to longitudinal expansion from rises in pressure. Metal wire braid on a hose assembly restrains against hose elongation under higher pressures and acts to dampen vibration. A heavy braid also increases abrasion resistance. Optimal braid coverage will contain the core under pressure and reduce the possibility of twisting and squirming.

The use of braided metal connectors for applications such as pumps, compressors and other mechanical equipment can enhance the overall operation of a system.

Features:

• Unique proven design for high working pressure
• Deep pitch stainless steel flexible hose and high tensile wire braid
• Stainless steel grooved ferrules and crimped ferrules
• Helium and hydrogen leak tested
• Permissible working temperature from -40 to +120 degree
• Maximum working pressure - As per table
• Under working pressure, extension rate - Approx 2% of initial length
